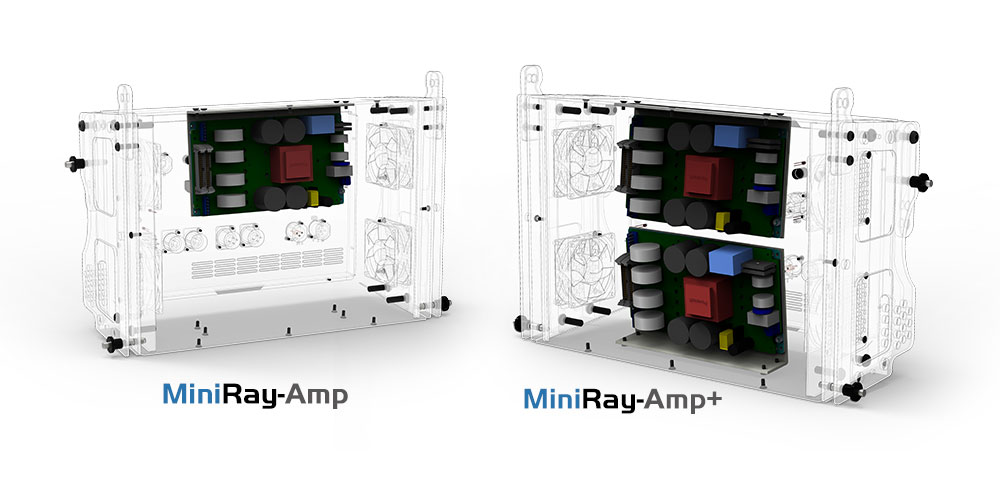

Power Amplifier Module

Channels

3Channels

4Channels

Output Power

2 x750W @4Ω +1 x1500W@8Ω

2 x1500W @8Ω +2 x1500W @8Ω

Frequency Response

20 Hz - 20 kHz ±0.5dB

SNR 20 Hz - 20 kHz A-weighted @8Ω

Typical＞115dB

THD+N (0.1W-1/2Power)

＜0.08%（Typical ＜0.05%）

DSP module

Sampling Rate/Bit Depth

48kHz / 24 Bit

Filters

HPF/LPF/31 band GEQ/8 band PEQ/1k taps FIR filter

Built-in mixer module

Input Channels

4 mic/line in; 2 line in; 2 AES Digital lnputs; stereo bluetooth input

On-board FX

3 stereo effects:Reverb/Delay/Chorus

Remote Control

Port:TCP/IP, Built-in WIFI     Software: PC/iPad

Nominal Power Requirement

100-240V  AC 50-60Hz

Dimensions(W × H × D)

448 x 296 x 156 mm / 17.6 x 11.7 x 6.1 in

Weight

7.8 kg / 17.1 lbs

10.7 kg / 23.5 lbs
